STATIC & DYNAMIC RESTRAINTS

Carpenter & Paterson provides a diverse range of restraint assemblies and devices that offer flexibility for designers to select products suited to their specific application in terms of type, size, and configuration. Their offerings meet both technical and economic requirements.

Our restraint systems have been enhanced to cover a wider range of load ratings and allow for increased field adjustment. High precision steel ball bushings and pins are now standard components throughout their product line. They have also introduced a new line of restraint yoke clamps. In addition, Carpenter & Paterson has improved their hydraulic snubbers and offers customizable options to accommodate different application conditions.

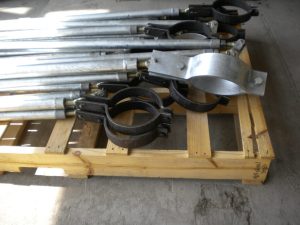

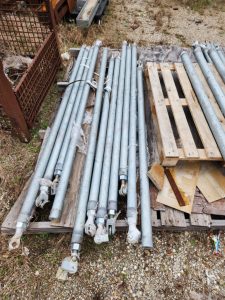

ADJUSTABLE RIGID STRUT (Figure 2250)

  • Size Range: 700 to 130,000 pounds (3,114 N to 578,240 N) load
  • Material: Carbon steel (except the load pin, which is stainless steel)
  • Service: Designed for rigid restraint applications, offering extensive field adjustment without the need for field welding
  • Installation: Securely fasten the end bracket to the structure. Attach the strut paddle to the end bracket. Adjust the strut to achieve the desired overall length. Fasten the strut to the pipe attachment. Once minor adjustments are completed, lock the unit by tightening the hex nut against the extension piece.
  • NOTE: Ensure that the rods are visible in the sight holes at each end of the strut to ensure proper thread engagement.
  • Field Adjustment: Plus or minus two inches (51 mm) (minimum)
  • Used With: Compatible with Carpenter and Paterson Figures 6175, 6202, 6222, 6252, 6520, 6521, 6525, 6526
  • Ordering: Specify the figure number, size, strut length (pin-to-pin length), and customer mark number (if applicable). For metric applications, specify Figure M2250.
  • Special lengths or other increments are available upon request.
STATIC & DYNAMIC RESTRAINTS

Hydraulic Snubber Assemblies

STANDARD DESIGN FEATURES:

  • Tamper-proof dual-stage flow control poppets ensure controlled movement of piping and equipment, with self-cleaning orifices.
  • Compact and efficient design, delivered as a complete unit ready for immediate use.
  • Manifold configuration eliminates the need for external piping.
  • Spherical, self-aligning ball bushings allow for up to 5 degrees of angular motion or misalignment.
  • Can be mounted in any spatial orientation due to the pressurized hydraulic reservoir.
  • Minimal resistance to normal thermal movements of the piping.
  • A standard primer finishes for paint.
  • Provides large restraining forces relative to its size.
  • Functions in both tension and compression restraint.
  • Stroke determination based on built-in datum point located on piston rod wrench flats.
  • Fluid Level Indicator for precise measurement of fluid level, eliminating the need for estimation.

REFER TO THIS CATALOG FOR DETAILED SPECIFICATIONS:

Contact Our Sales Office To Order Static And Dynamic Restraint.

Contact our experienced team today to help you choose the best solution for your STATIC & DYNAMIC RESTRAINTS requirements.
